Hoffman Voltameter Manufacturer,Supplier and Exporter in India
Product Code : EL-DR-10641

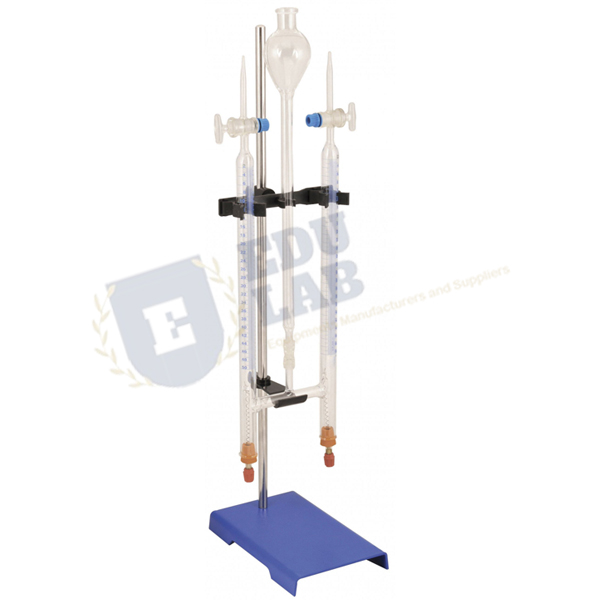

Quick Answer: The Hoffman Voltameter is a borosilicate glass unit with two connected limbs, each graduated to 50 ml with a stopcock at the top, joined to a reservoir with a funnel-shaped bulb and supplied with platinum and carbon electrode pairs.
Last updated: October 2026
Key Features
Borosilicate glass unit with two connected limbs, each graduated for 50 ml.
Stopcock at the top of each limb.
Reservoir tube with funnel-shaped bulb, 200 ml capacity.
One pair of platinum electrodes and one pair of carbon electrodes.
Overall 700 x 85 mm (height x width); supplied without stand.
Technical Specifications
Specification
Value
Material
Borosilicate glass
Limbs
Two, connected, graduated for 50 ml
Stopcocks
One at the top of each limb
Reservoir
200 ml, with funnel-shaped bulb
Electrodes
1 pair platinum, 1 pair carbon
Overall size
700 x 85 mm (height x width)
Stand
Not included
About This Product
The voltameter demonstrates the decomposition of water and the determination of chemical composition by electrolysis, and it can be used to evaluate the electrochemical equivalent of hydrogen. Platinum electrodes are used for the electrolysis of water, and the carbon pair for ammonia or hydrochloric acid. It is supplied without a stand and measures 700 x 85 mm overall.
Frequently Asked Questions
Which electrodes are supplied?
One pair of platinum electrodes, used for the electrolysis of water, and one pair of carbon electrodes, used for the electrolysis of ammonia or hydrochloric acid.
Is a stand included?
No. The voltameter is supplied without a stand. It measures 700 x 85 mm overall (height x width).
What can it demonstrate?
Decomposition of water, determination of chemical composition by electrolysis, and evaluation of the electrochemical equivalent of hydrogen.
