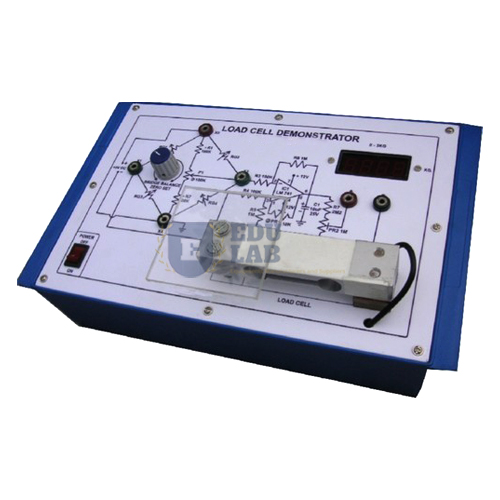

Load Cell Demonstrator Manufacturer,Supplier and Exporter in India
Product Code : EL-EELE-11302
Quick Answer: The Load Cell Demonstrator is built around a 3 kg load cell with 200 mV output, read on a three-and-a-half digit panel meter scaled for 3 kg. IC-regulated supplies and a comparison IC are on board, with sockets for connections and waveform observation.
Last updated: October 2026
Key Features
3 kg load cell with 200 mV output.
Three-and-a-half digit DPM reading up to 3 kg.
+/-12 V DC and 5 V DC IC-regulated supplies, each at 100 mA.
IC for comparing the load signal.
Terminals and sockets on the panel for connections and waveform observation.
Operating instructions with object, theory, design procedure, report suggestions and book references.
Technical Specifications
Specification
Value
Load cell
3 kg, 200 mV output
Display
Three-and-a-half digit DPM, 3 kg
Power supplies
+/-12 V DC and 5 V DC at 100 mA, IC regulated
Mains
230 V +/-10%, 50 Hz AC
Weight
About 4 kg
Dimensions (W x H x D)
340 x 110 x 210
About This Product
Placing a load on the cell changes its output, and the demonstrator lets students trace that signal through the comparison stage to the weight shown on the digital panel meter. The detailed instructions take them through the theory and design steps and suggest how to write up the experiment. The Load Cell Demonstrator can be dispatched from India to Brazil, Grenada, Iceland, Jamaica, Haiti and Luxembourg.
Frequently Asked Questions
What capacity is the load cell on the Load Cell Demonstrator?
It is a 3 kg load cell with 200 mV output, and the three-and-a-half digit DPM reads up to 3 kg.
What mains supply does it need?
230 V +/-10% at 50 Hz AC, switched by a mains ON/OFF switch with a fuse.
