Permeability and Fluidisation Studies Apparatus Manufacturer,Supplier and Exporter in India
Product Code : EL-EELE-11389

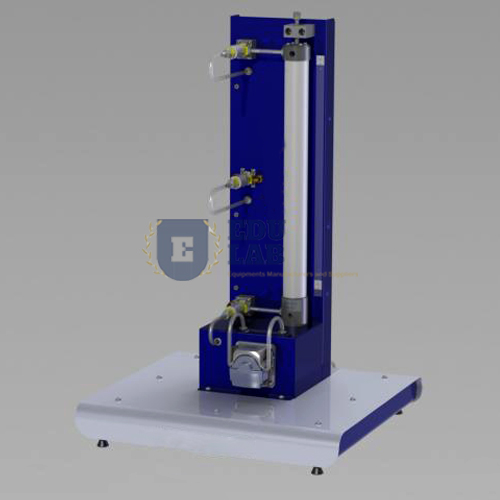

Quick Answer: The Permeability and Fluidisation Studies Apparatus needs no power connection: tap water passes through a constant head tank into a transparent sample tube, 507 mm long with a 38 mm bore, where flow and pressure drop are measured.
Last updated: October 2026
Key Features
Transparent sample tube, 507 mm long with 38 mm internal diameter.
Constant head tank fed from a laboratory tap, also releasing air bubbles.
Hand needle valve for flow control; variable area meter, 50-800 ml/min.
0.5m water differential manometer; 0.5m mercury manometer for larger drops.
Isolation and air release valves; corrosion-resistant metal fittings.
Light enough for one person to lift and carry.
Technical Specifications
| Specification | Value |
|---|---|
| Sample tube length | 507 mm |
| Sample tube I/D | 38 mm |
| Flow meter range | 50-800 ml/min |
| Manometers | 0.5m water differential; 0.5m mercury |
| Power | None required |
About This Product
Water flows from the constant head tank through the sample tube at a rate set on the needle valve and read on the variable area meter, while a manometer gives the pressure drop across the bed. Because the tube and all connections are transparent, students can watch the bed and spot any trapped air before taking readings. Colleges and TVET centres in Saint Vincent and the Grenadines, Ghana, Armenia, Philippines and Angola can source the Permeability and Fluidisation Studies Apparatus from Educational Lab Equipments.
Frequently Asked Questions
Does it need an electrical supply?
No power connections are required. Water comes from a laboratory tap through a constant head tank, and the whole apparatus can be lifted and moved by one person.
How is pressure drop measured?
Across the bed, with either a 0.5m water differential manometer or a 0.5m mercury manometer depending on the size of the drop; the mercury manometer is listed among recommended accessories.
What size is the sample tube?
507 mm long with an internal diameter of 38 mm.
