Single Phase Energy Meter Trainer Manufacturer,Supplier and Exporter in India
Product Code : EL-EELE-11324
Quick Answer: The Single Phase Energy Meter Trainer opens up an electronic energy meter for single-phase, 2-wire supply, with an LCD that counts units consumed and also shows load wattage and running time.
Last updated: October 2026
Key Features

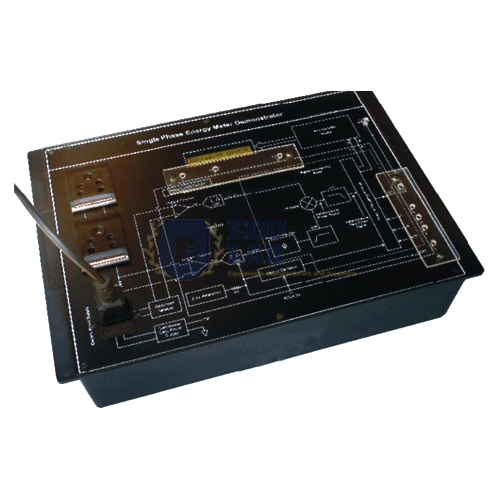

Meter circuit for single-phase, 2-wire distribution, with a diagram of the energy meter on the board.
Two ADCs, a reference circuit and a fixed DSP function that calculate real power.
Microcontroller-driven LCD showing units consumed, load wattage and time since switch-on.
High-frequency pulse output for calibration; meter constant 1600 impulses/kWh on the LED.
Test points for measuring voltages around the circuit.
Sockets for supply and load connections; extensive e-manual.
Technical Specifications
Specification
Value
Maximum current
30 A
Line voltage
230V AC +/- 10%, 50 Hz
Display counter
100 impulses/kWh (LCD)
Meter constant
1600 impulses/kWh (LED)
Distribution system
Single-phase, 2-wire
About This Product
The board lets students follow how an electronic meter arrives at a figure for real power: two ADCs digitise the inputs, a fixed DSP block does the calculation and an integrated stable oscillator clocks the IC. The pulse output and LED count are there for calibration work, and the test points let the class measure voltages at each stage. Educational Lab Equipments can supply and export the Single Phase Energy Meter Trainer to Senegal, Syria, Montenegro, Benin, Central African Republic and Slovenia.
Frequently Asked Questions
What does the LCD on this trainer show?
It counts the units consumed, shows the wattage of the connected load and shows how long the system has been on. The LCD counter runs at 100 impulses per kWh.
What supply and current does it handle?
It runs on 230V AC (plus or minus 10%, 50 Hz) and is specified for a maximum current of 30 A.
