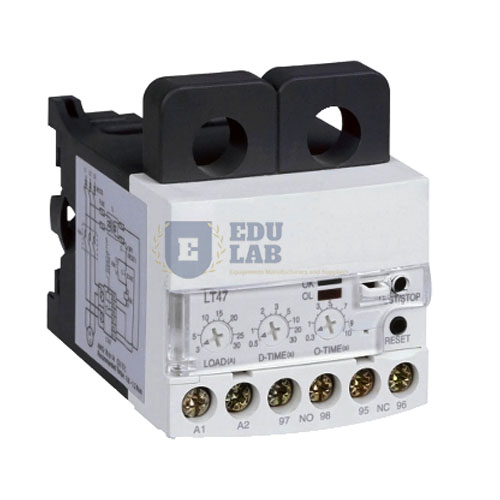

Time Overcurrent Relay Manufacturer,Supplier and Exporter in India
Product Code : EL-EELE-11410
Quick Answer: The Time Overcurrent Relay offers three inverse-time characteristics – normal, severely inverse and extremely inverse – with settings entered by hand or from a PC through SCADA.
Last updated: October 2026
Key Features
Three inverse current characteristics: normal, severely inverse and extremely inverse.
Relay parameters set manually or from a PC via SCADA.
Integrated program for a self-test.
Integrated tripping test.
About This Product
Students pick one of the three curves, set the relay parameters and compare how the tripping behaviour changes from one characteristic to the next. Linking the relay to a PC through SCADA brings remote setting into the exercise, and the built-in self-test and tripping test check the relay before a protection experiment.
Frequently Asked Questions
Which tripping characteristics are available?
Three inverse current characteristics: normal, severely inverse and extremely inverse.
Can the relay be set from a computer?
Yes. Parameters can be set manually or with a PC via SCADA. An integrated program also runs a self-test and the tripping test.
