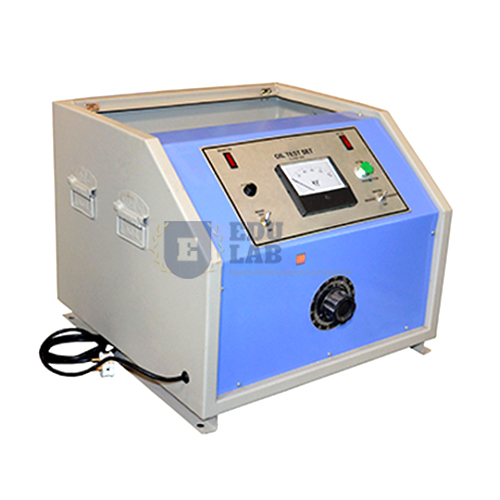

Transformer Oil Set Manufacturer,Supplier and Exporter in India
Product Code : EL-EELE-11238
Quick Answer: A breakdown voltage test set for transformer oil, using an epoxy-cast high voltage transformer fed from 1 ph 220V and an oil cup with go and no-go gauges.
Last updated: October 2026
Key Features
Epoxy-cast high voltage transformer.
Input 1-phase 220 V; high voltage output from 0 to 60 kV.
Oil cup with go and no-go gauges.
Manual or motorised operation.
Built-in control and protection circuits, duly wired.
Power-on and trip status indicators.
Technical Specifications
Specification
Value
Input
1-phase, 220 V
Output
0 to 60 kV
Transformer
High voltage, epoxy cast
Test cup
Oil cup with go and no-go gauges
Operation
Manual or motorised
About This Product
Oil is tested in the cup by raising the high voltage until the sample breaks down, which gives its breakdown voltage. The voltage rise can be driven by hand or by motor, and a trip indicator shows when the set has tripped.
Frequently Asked Questions
What power supply does the Transformer Oil Set need?
It runs from a 1-phase 220V input, and its epoxy-cast high voltage transformer gives an output from 0 to 60 kV.
