Single Cylinder Engine Test Bed Manufacturer,Supplier and Exporter in India
Product Code : EL-EAMM-11567
Quick Answer: The Single Cylinder Engine Test Bed is built in two parts: a welded steel baseplate carrying a DC dynamometer, and a console over it holding the instruments, fuel and air flow measurement and all control circuits.
Last updated: October 2026
Key Features
Welded steel baseplate with DC dynamometer, drive coupling and guard.
Spring-type anti-vibration mountings, exhaust silencer and flexible pipe.
Provision for engine mountings on the baseplate.
Console over the test bed carrying all instrumentation and controls.
Fuel flow measured by burette, plus a separate air flow measurement system.
Multi-point temperature indicator and the electrical circuits for dynamometer and engine control.
Technical Specifications
| Specification | Value |
|---|---|
| Baseplate | Welded steel |
| Dynamometer | DC |
| Mountings | Spring-type anti-vibration |
| Fuel flow measurement | Burette |
| Temperature | Multi-point indicator |
| Console | Framework over test bed with instruments and controls |
About This Product
The test bed covers the core single-cylinder experiments: air/fuel ratio, frictional power losses, volumetric efficiency and performance at full and part load. Burette fuel readings and the air flow system also allow fuel consumption mixture loops to be drawn, while the multi-point temperature indicator supports heat balance and energy studies. Colleges and TVET centres in Argentina, Brunei, Eswatini, Moldova and Djibouti can source the Single Cylinder Engine Test Bed from Educational Lab Equipments.
Frequently Asked Questions
What are the two main parts of the test bed?
A welded steel baseplate with the DC dynamometer, coupling, guard, anti-vibration mountings and exhaust silencer, and a framework/console positioned over it that carries the instruments, controls, fuel and air flow measurement and electrical circuits.
How is fuel consumption measured?
The fuel system on the console measures flow with a burette, and a separate air flow measurement system is provided, so air/fuel ratio can be worked out.
Can heat balance tests be done?
Yes. Heat balance and energy studies are among the listed experiments, and the console carries a multi-point temperature indicator.

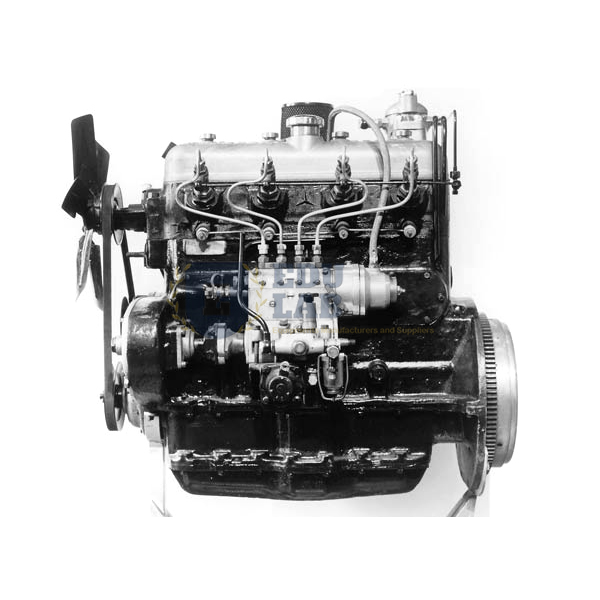

Related: Engines and Machines Models, Multi-cylinder Engine Test Beds, Automotive One Engine Test Set, Variable Compression Equipment.
For a quotation on the Single Cylinder Engine Test Bed, contact Educational Lab Equipments.
