Window Air Conditioner Test Rig Manufacturer,Supplier and Exporter in India
Product Code : EL-RAACLE-11516
Quick Answer: The Window Air Conditioner Test Rig is a 1.0 TR window unit held in an angle frame with its cover cut half open, tapped for pressure and temperature readings so students can run performance trials.
Last updated: October 2026
Key Features
1.0 TR window air conditioner with the cover cut half open to show its internal parts.
Rotary, hermetically sealed compressor; capillary tube expansion; molecular sieve drier/filter.
Axial flow condenser fan and centrifugal evaporator fan.
Two pressure gauges at suction and discharge, and a digital indicator for refrigerant temperatures.
Sling psychrometer for inlet and outlet dry-bulb and wet-bulb temperatures.
Inclined tube manometer for air velocity, and an energy meter on the compressor.
Technical Specifications
| Specification | Value |
|---|---|
| Capacity | 1.0 TR at rated test conditions |
| Compressor | Rotary, hermetically sealed |
| Condenser | Forced convection air cooled, axial flow fan |
| Evaporator | Forced convection air cooled, centrifugal fan |
| Expansion device | Capillary tube |
| Drier/filter | Molecular sieve type |
| Pressure gauges | 2, at suction and discharge |
| Air velocity | Inclined tube manometer |
| Supply | 220–240 V, 50 Hz, single phase |
| Input power / rated current | 1.2 kW / 6.0 A |
| Panel | 1.2 mm CRCA, powder coated |
About This Product
Students first study how a window air conditioner is built and then run it as a test unit. Pressure and temperature readings at the main points of the circuit, the compressor's energy consumption and the psychrometer's dry-bulb and wet-bulb readings together let them evaluate its performance, with the manometer giving air velocity and from it the air flow rate.
Frequently Asked Questions
How is the air flow rate found?
An inclined tube manometer gives the air velocity, from which the flow rate of air is worked out. A sling psychrometer measures the dry-bulb and wet-bulb temperatures of the air entering and leaving the unit.
What power supply does it need?
It runs on 220–240 V, 50 Hz, single phase. Input power is 1.2 kW with a rated current of 6.0 A, and an energy meter records the compressor's consumption.

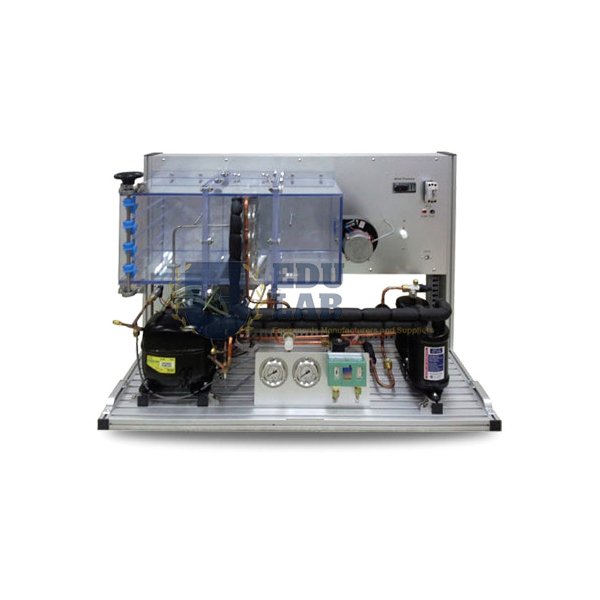

Related: Refrigeration and Air Conditioning Lab Equipments, Domestic Air Conditioner Module, General Cycle Air Conditioning Test Rig, Re-Circulation Type Air Conditioning Test Rig.
