Isothermal Continuous Stirred Tank Reactor Manufacturer,Supplier and Exporter in India
Product Code : EL-TWL-11780

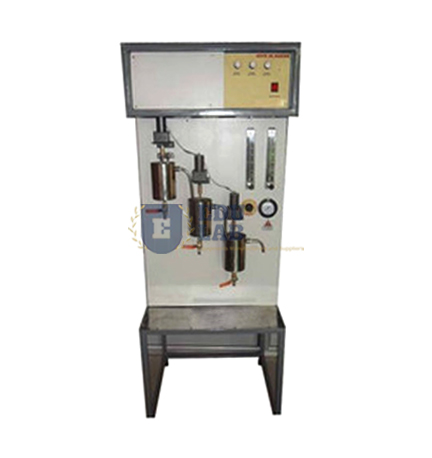

Quick Answer: The Isothermal Continuous Stirred Tank Reactor runs a non-catalytic homogeneous second order liquid phase reaction at controlled temperature, with a constant temperature water bath around the stirred reactor. Two feed tanks supply the reactants through a magnetic drive pump and rotameters.
Last updated: October 2026
Key Features
Stirred mixed flow reactor with uniform composition, so the exit stream matches the contents.
Constant temperature water bath for runs at various temperatures.
Two feed tanks with a magnetic drive pump for feed circulation.
Rotameters with needle valves to set each reactant flow.
Sampling from the top outlet.
Technical Specifications
| Specification | Value |
|---|---|
| Mixing | Stirrer |
| Feed | Two feed tanks, magnetic drive pump |
| Temperature | Constant temperature water bath |
| Electricity | Single phase, 220 V AC, 1.5 kW |
About This Product
Saponification is the reaction studied: students feed the two reactants continuously, hold the reactor at a chosen bath temperature and analyse samples from the top outlet. Repeating the run at different temperatures gives the reaction rate constant and shows how temperature changes it. All calculations assume perfect mixing, the ideal behind the back-mix or vat reactor model. The Isothermal Continuous Stirred Tank Reactor can be dispatched from India to Zambia, Portugal, Fiji, Luxembourg, Saint Lucia and Australia.
Frequently Asked Questions
What makes this CSTR isothermal?
A constant temperature water bath arrangement holds the reactor at the chosen temperature, so the experiment can be run at various fixed temperatures.
Which experiment is it used for?
Saponification in the CSTR, to find the reaction rate constant and the effect of temperature on it.
What utilities are needed?
A single-phase 220 V AC, 1.5 kW electricity supply, water supply and drain, plus instruments, glassware and chemicals for analysis.
Related: Training Workshop Labs, Continuous Stirred Tank Reactor, Isothermal Batch Reactor, Isothermal Semi Batch Reactor.
For a quotation on the Isothermal Continuous Stirred Tank Reactor, contact Educational Lab Equipments.
