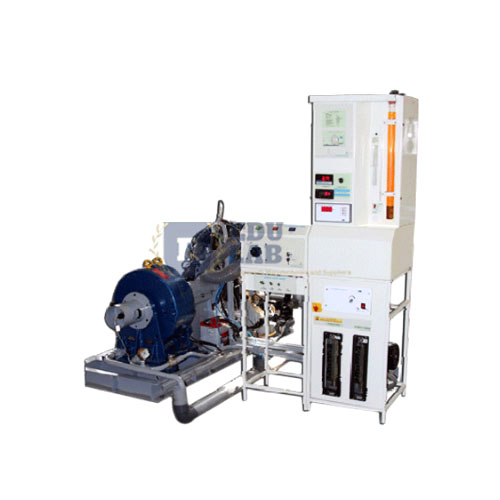

Multi Cylinder Four Stroke Water Cooled Diesel Engine Test Rig Manufacturer,Supplier and Exporter in India
Product Code : EL-EELE-11392
Quick Answer: The Multi Cylinder Four Stroke Water Cooled Diesel Engine Test Rig couples a multi-cylinder diesel engine to a dynamometer, with fuel and air intake measurement, for performance testing in the IC engines lab.
Fuel measuring and air intake measuring arrangements.
Needs a continuous cooling water supply of about 10 LPM.
Single Phase, 220 V, 5 Amp supply; floor area 3m x 2m.
Technical Specifications
Specification
Value
Engine
Multi cylinder, four stroke, diesel, water cooled
Electric supply
Single Phase, 220 V, 5 Amp
Cooling water
Continuous, 10 LPM approx.
Fuel
10 litres
Floor area
3m x 2m
Speed measurement
Tachometer
About This Product
On this rig the dynamometer absorbs the engine's output while fuel and air consumption are measured and a tachometer gives the speed, so performance can be worked out at each load. It also gives students a working example of how engines are classed by cycle, number and arrangement of cylinders, fuel, ignition, valve arrangement and cooling.
Frequently Asked Questions
What does the test rig include?
An IC engine, a dynamometer, fuel measuring and air intake measuring arrangements, and other fittings needed for performance tests.
What utilities are required?
Single Phase 220 V, 5 Amp electricity; continuous water supply of about 10 LPM; 10 litres of fuel; a floor area of 3m x 2m; and a tachometer for RPM measurement.
