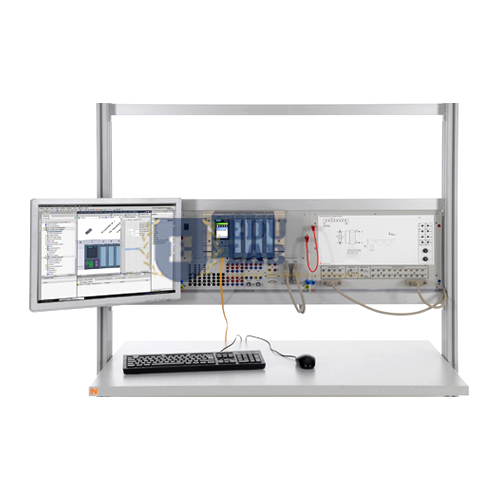

Universal Application Simulator Manufacturer,Supplier and Exporter in India
Product Code : EL-EELE-11407
Quick Answer: The Universal Application Simulator gives a PLC a simulated process to control, with 20 digital sensor outputs, 8 digital actuator inputs and analog channels, all working at 24 V DC.
Last updated: October 2026
Key Features
20 digital outputs acting as sensors and 8 digital inputs acting as actuators.
Analog outputs (sensor signals) and analog inputs (actuator signals).
Running lights.
Connections made on 4 mm safety sockets.
System connector for input signals and socket for output signals to link with a PLC.
Operates on 24 V DC.
Technical Specifications
Specification
Value
Digital outputs (sensors)
20
Digital inputs (actuators)
8
Analog channels
Outputs (sensors) and inputs (actuators)
Connections
4 mm safety sockets
PLC link
System connector for input and output signals
Operating voltage
24 V DC
About This Product
Plugged into a PLC through its system connectors, the simulator sends sensor-type signals to the controller and takes in the actuator commands the program produces, so a control program can be exercised against simulated field devices. The 4 mm safety sockets also allow single channels to be patched by hand. The Universal Application Simulator can be dispatched from India to Solomon Islands, Sudan, Serbia, Kyrgyzstan, Honduras and Jamaica.
Frequently Asked Questions
How does the simulator connect to a PLC?
Through a system connector: one connector carries the input signals and a socket carries the output signals. Individual connections can also be made on 4 mm safety sockets.
How many digital signals does it provide?
20 digital outputs that act as sensors and 8 digital inputs that act as actuators, alongside analog outputs and inputs. It runs on 24 V DC.
