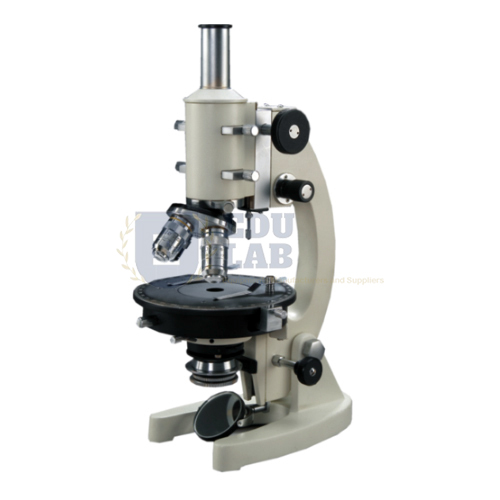

Laboratory Polarising Microscope Manufacturer,Supplier and Exporter in India
Product Code : EL-M-10998
Quick Answer: The Laboratory Polarising Microscope uses strain-free plan achromatic objectives for transmitted light, with a sub-stage polariser on a strain-free Abbe condenser of N.A. 1.25 and built-in halogen illumination.
Last updated: October 2026
Key Features
Strain-free plan achromatic objectives for transmitted-light observation.
Polarising intermediate attachment, 1.2x, with built-in Bertrand lens on a rotating turret.
Swing-in/swing-out analyser.
Compensator slot taking a first-order red sensitive tint plate and a quarter-wave plate.
Quadruple ball-bearing nosepiece; coaxial coarse and fine motions on a ball-bearing guide.
Sub-stage polariser on a strain-free Abbe condenser, N.A. 1.25; built-in halogen lighting and coated optics.
Technical Specifications
| Specification | Value |
|---|---|
| Objectives | Strain-free plan achromatic |
| Intermediate attachment | 1.2x, Bertrand lens on rotating turret |
| Analyser | Swing in / swing out |
| Compensator slot | First-order red tint plate, quarter-wave plate |
| Condenser | Strain-free Abbe, N.A. 1.25, sub-stage polariser |
| Nosepiece | Quadruple, ball bearing |
| Illumination | Built-in halogen |
About This Product
Polariser and analyser work as a pair: the polariser sits below the condenser and the analyser can be swung in or out of the light path. The Bertrand lens on its turret is used for conoscopic observation, and the tint and quarter-wave plates fit the compensator slot when needed. Educational Lab Equipments can supply and export the Laboratory Polarising Microscope to Lithuania, Haiti, Niger, Laos, Trinidad and Tobago and Paraguay.
Frequently Asked Questions
Which compensator plates does the Laboratory Polarising Microscope take?
Its compensator slot accommodates a first-order red sensitive tint plate and a quarter-wavelength plate.
What does the polarising intermediate attachment include?
It adds 1.2x magnification and carries a built-in Bertrand lens on a rotating turret, a swing-in/swing-out analyser and the compensator slot.
Related: Microscopes, Laboratory Ore Microscope, Monocular Laboratory Microscope.
For a quotation on the Laboratory Polarising Microscope, contact Educational Lab Equipments.
