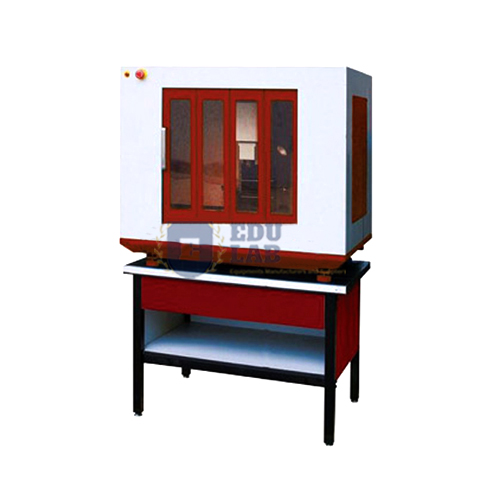

CNC Milling Machine Table Model Manufacturer,Supplier and Exporter in India
Product Code : EL-CTM-11725
Quick Answer: The CNC Milling Machine Table Model carries a 400 x 145 mm worktable with three 8 mm T-slots and a 500 W spindle that turns at 100–7000 rpm, giving students CNC milling and drilling practice.
Last updated: October 2026
Key Features
400 x 145 mm worktable, three 8 mm T-slots, maximum load 20 kg.
Axis travel of 260 mm (X), 110 mm (Y) and 180 mm (Z).
500 W spindle motor with a speed range of 100–7000 rpm.
Feed motors rated 1.35 Nm on X and Y, 2.2 Nm on Z.
500 mm/min feeding speed, 2 m/min maximum moving speed.
10 mm drilling capacity and 150 mm throat.
Technical Specifications
Specification
Value
Worktable size
400 x 145 mm
T-slots
3 x 8 mm
Maximum table load
20 kg
Travel X / Y / Z
260 / 110 / 180 mm
Throat
150 mm
Spindle motor
500 W
Spindle speed
100–7000 rpm
Feed motor torque
X and Y 1.35 Nm, Z 2.2 Nm
Position precision
0.015 mm
Machine size (L x W x H)
1040 x 860 x 940 mm
Net weight
178 kg
About This Product
Parts up to 20 kg are clamped on the slotted table, then milled or drilled to 10 mm under CNC control, with each axis feeding at 500 mm/min. The 100–7000 rpm spindle range lets the speed be matched to the tool and the job, and position precision is listed as 0.015 mm.
Frequently Asked Questions
What is the spindle speed range of the CNC Milling Machine Table Model?
100 to 7000 rpm, from a 500 W spindle motor.
How much can the table hold?
The 400 x 145 mm worktable takes up to 20 kg and has three 8 mm T-slots for clamping.
What are the machine size and weight?
1040 x 860 x 940 mm (L x W x H), with a net weight of 178 kg.
