Knurling Tool Holder Manufacturer,Supplier and Exporter in India
Product Code : EL-MMTM-11936

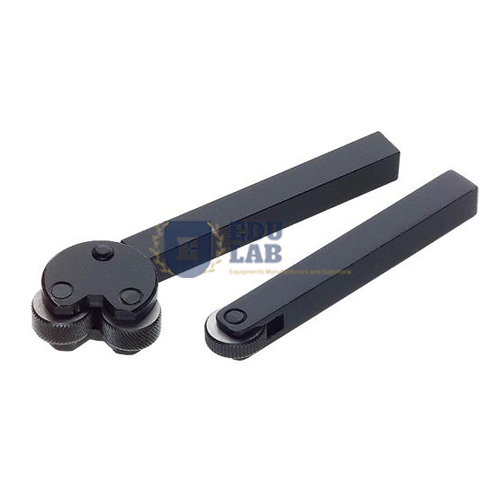

Quick Answer: Fitted with high-speed steel knurls and given a shiny black finish, the Knurling Tool Holder is made in two-knurl and six-knurl versions. The six-knurl tool carries one pair each of fine, medium and coarse knurls, while the two-knurl tool normally has medium knurls.
Last updated: October 2026
Key Features
High-speed steel knurls; shiny black finish.
Six-knurl holders carry one pair each of fine, medium and coarse knurls.
Two-knurl holders come with medium knurls as standard, with other grades available if required.
Holder sizes from 5/16 x 3/4 x 5 in up to 5/8 x 1-3/8 x 7-1/2 in.
Knurls of 5/8 in or 3/4 in diameter.
Pivot head self-adjusting version with a 1/2 x 1/2 x 4-1/2 in holder.
Technical Specifications
Specification
Value
Knurl material
High-speed steel
Finish
Shiny black
Versions
Two-knurl, six-knurl, pivot head self-adjusting
Holder sizes
5/16 x 3/4 x 5 in, 3/8 x 7/8 x 5-1/2 in, 1/2 x 1-1/8 x 6-1/2 in, 5/8 x 1-3/8 x 7-1/2 in, 1/2 x 1/2 x 4-1/2 in
Knurl diameter x thickness
5/8 x 5/16 in or 3/4 x 3/8 in (3/4 x 1/4 in on the pivot head)
Knurl hole
7/32 in or 1/4 in
About This Product
Held in the lathe tool post, the knurls are pressed against the rotating work to roll a textured grip pattern into its surface. Four body sizes are made in both the two-knurl and six-knurl versions, and a smaller 1/2 x 1/2 x 4-1/2 in two-knurl holder is also available.
Frequently Asked Questions
What knurls come with the six-knurl Knurling Tool Holder?
One pair each of fine, medium and coarse knurls, all in high-speed steel.
Can the two-knurl version take other knurl grades?
Yes. It is normally provided with medium knurls, but other knurls can be provided if required.
Is there a self-adjusting version?
Yes. A pivot head self-adjusting holder of 1/2 x 1/2 x 4-1/2 in is available, using a 3/4 in diameter knurl.
