Chiller Water Bath Manufacturer,Supplier and Exporter in India
Product Code : EL-TWL-11775

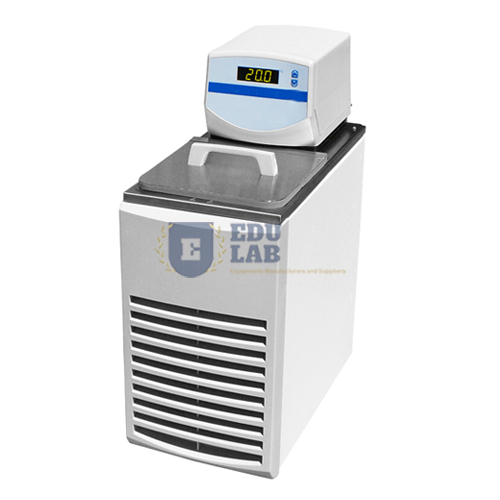

Quick Answer: The Chiller Water Bath is a refrigerated bath with a powder-coated mild steel outer body, stainless steel inner chamber and lids, and PUF insulation between the two. It has a 15 LPM circulation pump and a microprocessor-based PID digital temperature indicator-controller.
Last updated: October 2026
Key Features
Outer body of powder-coated mild steel sheet.
Stainless steel inner bath chamber and lids.
PUF insulation between inner and outer chambers to keep thermal loss low.
Circulation pump of 15 LPM capacity.
Microprocessor-based PID digital temperature indicator-cum-controller.
Offered with 13 L or 23 L bath volume.
Technical Specifications
Specification
Value
Bath volume
13 L or 23 L
13 L ranges
Ambient to 0, -10, -20 or -30 degrees C
23 L ranges
Ambient to 0, -10 or -20 degrees C
Cooling medium (above +5 degrees C)
Water
Circulation pump
15 LPM
Controller
Microprocessor PID, digital
About This Product
Labs use the bath for analytical and research work and for thermal control applications, choosing a 13 L or 23 L size and the lowest temperature they need, down to -30 degrees C in the smaller bath. The pump circulates the cooled water while the PID controller holds the set point, and the insulated stainless steel chamber limits thermal loss.
Frequently Asked Questions
How cold can the Chiller Water Bath go?
The 13 L bath is listed in ranges from ambient to 0, -10, -20 and -30 degrees C, and the 23 L bath from ambient to 0, -10 and -20 degrees C.
What is the bath body made of?
The outer body is powder-coated mild steel sheet, the inner chamber and lids are stainless steel, and PUF insulation fills the space between them.
