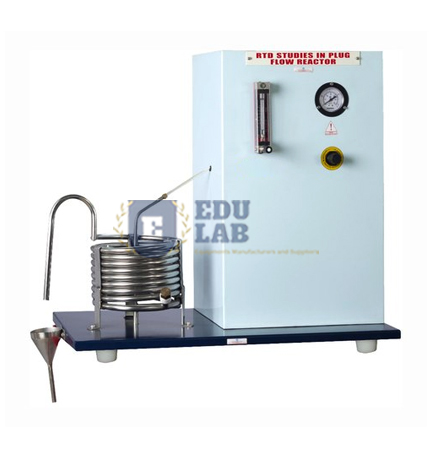

RTD Studies in Plug Flow Reactor Manufacturer,Supplier and Exporter in India
Product Code : EL-TWL-11785
Quick Answer: RTD Studies in Plug Flow Reactor uses a stainless steel helical coil reactor fed with water from one feed tank, with tracer injected by syringe at the lower end to measure residence time distribution. Samples are collected at the top of the coil.
Last updated: October 2026
Key Features
Helical coil tube plug flow reactor of stainless steel pipe.
One feed tank supplying water; magnetic drive pump for circulation.
Syringe arrangement for injecting tracer at the lower end of the reactor.
Flow set with a needle valve and read on a rotameter.
Samples collected at the top outlet of the coil.
Technical Specifications
Specification
Value
Reactor
Helical coil, stainless steel pipe
Feed
One tank, water
Pump
Magnetic drive
Tracer injection
Syringe at lower end
Flow measurement
Rotameter with needle valve
About This Product
The stimulus-response technique is used to predict how a real vessel will behave as a chemical reactor. Real reactors drift from ideal plug flow because of channelling, recycling within the vessel, or stagnant pockets of fluid, and the RTD curve plotted from tracer samples shows how far this coil departs from the ideal.
Frequently Asked Questions
What is the main objective of this set-up?
To plot the RTD curve for a plug flow reactor, using tracer injected at the lower end and samples collected at the top.
Why do real reactors deviate from plug flow?
Deviation can come from channelling of fluid through the vessel, recycling of fluid within it, or stagnant regions or pockets of fluid.
