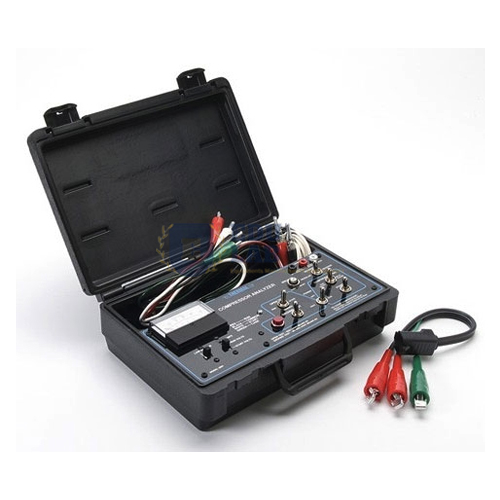

Compressor Analyzer Manufacturer,Supplier and Exporter in India
Product Code : EL-WEAWLM-11670
Quick Answer: The Compressor Analyzer tests single-phase compressors up to 5 HP at 110, 220 or 277 volts, and carries a built-in 200 microfarad start capacitor for jump-starting locked compressors.
Last updated: October 2026
Key Features
Tests start and run capacitors and system relays by substitution.
Running current on 0–10 and 50 A ranges.
Start and run voltage on 0–150 and 600 V AC ranges.
Tests windings for opens, continuity and grounds.
Frees tied-up compressors by reversing motor rotation.
30 A breaker; supplied with 220 V adapter cord and capacitor leads.
Technical Specifications
Specification
Value
Compressors tested
Single phase, up to 5 HP
Voltages
110, 220 or 277 V
Start capacitor
200 microfarad, built in
Current ranges
0–10, 50 A
Voltage ranges
0–150, 600 V AC
Breaker
30 A
Motor types
Split-phase, capacitor start, PSC
About This Product
Each compressor is tested the way it was designed to run, whether split-phase, capacitor start or PSC, and an external run capacitor can be connected where needed. The 30 A breaker lets the high starting current through while still giving overload protection. Colleges and TVET centres in Eswatini, São Tomé and Príncipe, Latvia, Samoa, Malawi and Cambodia can source the Compressor Analyzer from Educational Lab Equipments.
Frequently Asked Questions
Which compressors can the Compressor Analyzer test?
Single-phase compressors up to 5 HP at 110, 220 or 277 volts, tested as split-phase, capacitor start or PSC.
Can it start a locked compressor?
Yes. It is designed for jump-starting locked-up compressors with its built-in 200 microfarad start capacitor, and tied-up compressors may be freed by reversing motor rotation.
What does it measure?
Running amps on 0–10 and 50 A ranges, and start and run volts on 0–150 and 600 V AC ranges. It also checks windings for opens, continuity and grounds.
