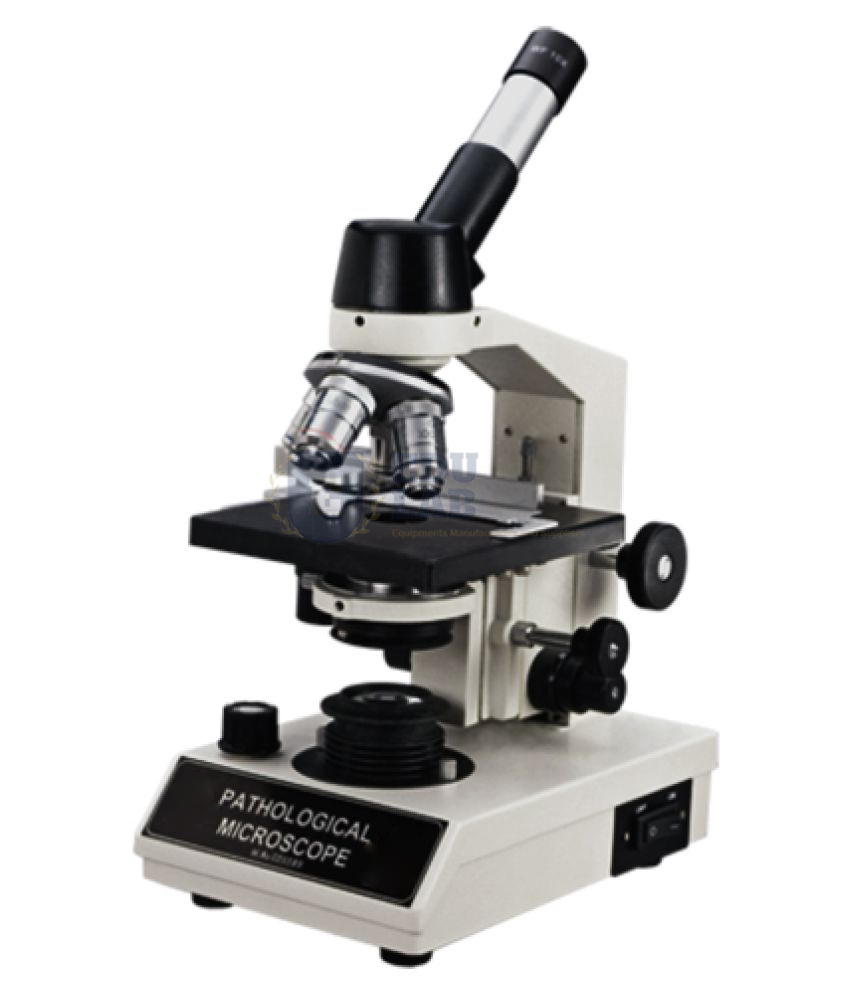

Pathological and Medical Microscope Manufacturer,Supplier and Exporter in India
Product Code : EL-M-10967
Quick Answer: The Pathological and Medical Microscope is a monocular microscope with a 45 degree head, a quadruple nosepiece carrying achromatic 4x, 10x, 40x (SL) and 100x (SL) objectives, and a 120 x 120 mm mechanical stage with XY movement.
Last updated: November 2026
Key Features
Monocular viewing head at 45 degrees with WF 10x eyepiece (18 mm).
Quadruple upright nosepiece with achromatic 4x, 10x, 40x (SL) and 100x (SL) objectives.
Mechanical stage 120 x 120 mm with XY movement.
Movable Abbe condenser, N.A. 1.25, with iris diaphragm, and blue filter.
Separate coarse and fine focusing.
Plano-concave mirror and LED lamp as light sources.
Technical Specifications
| Specification | Value |
|---|---|
| Viewing head | Monocular, 45 degrees |
| Eyepiece | WF 10x, 18 mm |
| Nosepiece | Quadruple, upright |
| Objectives | Achromatic 4x, 10x, 40x (SL), 100x (SL) |
| Stage | Mechanical, 120 x 120 mm, XY movement |
| Condenser | Movable Abbe, N.A. 1.25, iris diaphragm |
| Focusing | Separate coarse and fine |
| Filter | Blue |
| Light source | Plano-concave mirror and LED lamp |
About This Product
Four objectives on the quadruple nosepiece take a prepared slide from a 4x overview up to 100x on the same instrument, while the XY stage moves it across the field. Illumination comes from either the plano-concave mirror or the LED lamp, gathered by the movable Abbe condenser and set with its iris diaphragm.
Frequently Asked Questions
Which objectives come with the Pathological and Medical Microscope?
Achromatic 4x, 10x, 40x (SL) and 100x (SL) objectives on a quadruple upright nosepiece, viewed through a WF 10x eyepiece.
What light sources does it use?
A plano-concave mirror and an LED lamp, with a movable Abbe condenser of N.A. 1.25, an iris diaphragm and a blue filter.
What else is useful with the Pathological and Medical Microscope in a college or clinical lab?
A Stage Micrometer for calibrating the eyepiece scale, prepared slides such as Artery, Vein & Nerve (400x) and Bacteria (1000x, gram stain), and a Slide Holder for storing slides.
How should the Pathological and Medical Microscope be cleaned and stored?
Switch off and let the lamp cool, wipe oil from the 100x objective with lens tissue, lower the stage, set the lowest-power objective in place and fit the dust cover.
