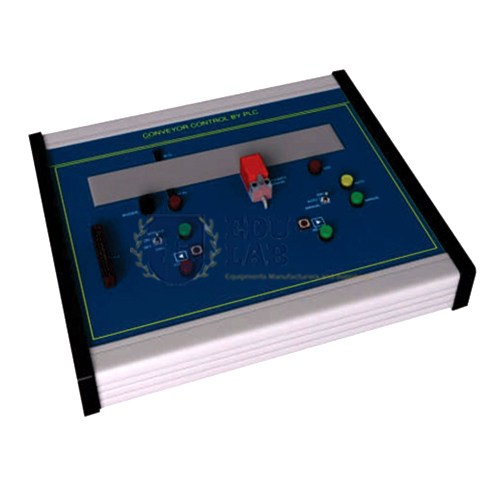

Conveyor Control By PLC Manufacturer,Supplier and Exporter in India
Product Code : EL-EELE-11334
Quick Answer: Conveyor Control By PLC is a conveyor application unit run in real time from a PLC trainer, with IR and proximity sensors for product sorting in auto or manual mode.
Last updated: October 2026
Key Features
Real-time conveyor control from a PLC, in auto or manual mode.
IR sensor and proximity sensor, each with a +24 V DC output.
Product sorting application; the user can add more sensors.
DC motor at +5 V DC; two toggle switches and two latch switches.
Powered from the PLC trainer (+24 V DC and +5 V DC) and linked with 2mm patch cords.
Course material and references; optional application boards.
Technical Specifications
Specification
Value
IR sensor
+24 V DC output
Proximity sensor
+24 V DC output
Digital input to PLC
+24 V DC when active
Digital output from PLC
+5 V DC when active
DC motor
+5 V DC
Switches
2 toggle, 2 latch
Power supply
From PLC trainer (+24 V DC and +5 V DC)
Interface
2mm patch cords
About This Product
Students write PLC programs that read the IR and proximity sensors and drive the conveyor motor, then use the set-up to sort products as they pass. The unit takes its +24 V DC and +5 V DC from a separate PLC trainer, connected with 2mm patch cords.
Frequently Asked Questions
What else is needed to run the conveyor?
A PLC trainer. It supplies the +24 V DC and +5 V DC the unit uses, and the two are connected with 2mm patch cords.
What sensors are fitted?
An IR sensor and a proximity sensor, both with a +24 V DC output. Provision is made for the user to expand the number of sensors.
