Mechanical Heat Pump Manufacturer,Supplier and Exporter in India
Product Code : EL-RAACLE-11509

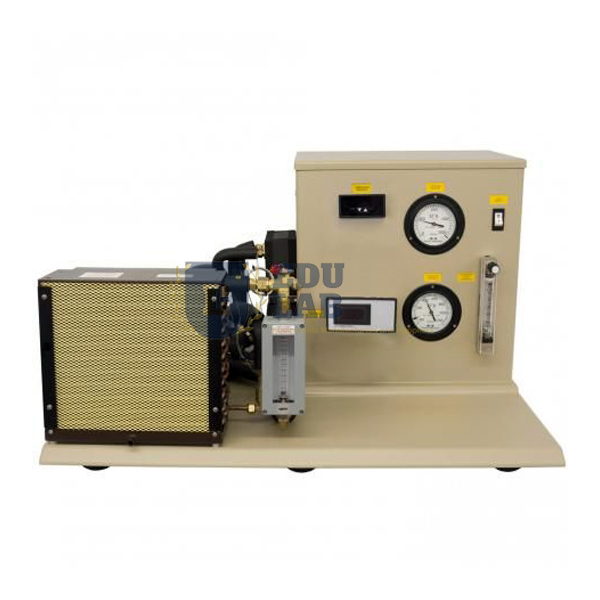

Quick Answer: The Mechanical Heat Pump rig sets a hermetically sealed compressor, heat rejection and heat absorption chambers, drier-filter and expansion device on an open stand, with gauges, a rotameter and an energy meter for testing.
Last updated: October 2026
Key Features
Hermetically sealed compressor, heat rejection chamber, heat absorption chamber, drier-filter and expansion device.
Separate pressure gauges for the heat absorption and heat rejection sides.
Rotameter in the liquid line to measure refrigerant flow.
Digital temperature indicator for temperatures before and after the compressor and the expansion device.
Energy meter for the compressor's energy consumption.
Components displayed on a powder-coated fabricated stand.
Technical Specifications
| Specification | Value |
|---|---|
| Compressor | Hermetically sealed |
| Pressure measurement | Separate gauges, absorption and rejection sides |
| Refrigerant flow | Rotameter in liquid line |
| Temperature | Digital indicator, selectable points |
| Energy | Energy meter on compressor |
| Mounting | Powder-coated fabricated stand |
About This Product
Liquid leaving the heat rejection chamber is throttled through the expansion device and boils in the heat absorption chamber, and students follow that path with pressure, temperature and flow readings. With the energy meter on the compressor, the heat moved by the pump can be set against the energy it uses.
Frequently Asked Questions
What measurements can be taken on the heat pump?
Pressures on the heat absorption and heat rejection sides, refrigerant flow on the rotameter, temperatures before and after the compressor and the expansion device, and the energy consumed by the compressor.
What happens at the expansion device?
Liquid from the heat rejection chamber is throttled to low pressure and temperature, then passes to the heat absorption chamber where it boils. A drier-filter sits ahead of it.
Related: Refrigeration and Air Conditioning Lab Equipments, Reverse Cycle Refrigeration Training System, Re-Circulation Type Air Conditioning Test Rig, Vapour Absorption Test Rig.
For a quotation on the Mechanical Heat Pump, contact Educational Lab Equipments.
