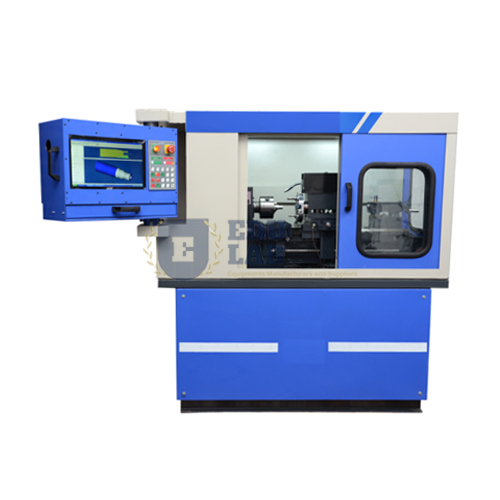

CNC Trainer Lathe Machine Manufacturer,Supplier and Exporter in India
Product Code : EL-CTM-11728
Quick Answer: The CNC Trainer Lathe Machine turns work up to 55 mm diameter and 100 mm long, with a 2-station linear turret, LM guideways on both axes and a 1.5 HP spindle motor.
Last updated: October 2026
Key Features
Maximum turning diameter 55 mm (standard 50 mm), maximum turning length 100 mm.
Swing over bed 150 mm; 80 mm chuck with 35 mm bore through spindle and 12 mm bar capacity.
Linear turret with 2 stations, 16 x 16 tool cross section, boring bars up to 32 mm.
X stroke 150 mm, Z stroke 100 mm, rapid traverse 15 m/min on both.
LM guideways on the X and Z axes.
Position accuracy 0.015 mm, repeatability +/-0.003 mm.
Technical Specifications
Specification
Value
Maximum turning diameter
55 mm (standard 50 mm)
Maximum turning length
100 mm
Swing over bed
150 mm
Turret
Linear, 2 stations
Tool cross section
16 x 16
Maximum boring bar diameter
32 mm
Stroke X / Z
150 / 100 mm
Rapid traverse X and Z
15 m/min
Chuck size
80 mm
Bore through spindle / bar capacity
35 mm / 12 mm
Spindle motor
1.5 HP
Speed range
4000 rpm
Position accuracy / repeatability
0.015 mm / +/-0.003 mm
Weight
Approx. 1000 kg
About This Product
Bar stock up to 12 mm passes through the spindle, and the 80 mm chuck holds work for turning to a maximum of 55 mm in diameter over a 100 mm length. Both slides run on LM guideways with 15 m/min rapid traverse, and the linear turret carries two tools, including a boring bar of up to 32 mm.
Frequently Asked Questions
What size of work can the CNC Trainer Lathe Machine turn?
Up to 55 mm in diameter and 100 mm in length; the standard turning diameter is 50 mm and the swing over bed is 150 mm.
What turret does it use?
A linear turret with two stations, for tools of 16 x 16 cross section and boring bars up to 32 mm in diameter.
How accurate is it?
Position accuracy is 0.015 mm and repeatability is +/-0.003 mm.
