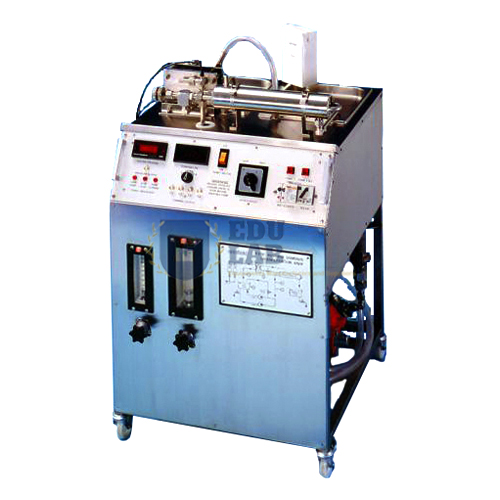

Reverse Osmosis Ultra filtration Unit Manufacturer,Supplier and Exporter in India
Product Code : EL-TWL-11772
Quick Answer: The Reverse Osmosis Ultra filtration Unit is a self-contained mobile cabinet for RO and UF trials, supplied with packs of both membrane types and variable pressure up to 55 bar. Feed and permeate tanks of 15 litres each, a plate heat exchanger and positive displacement pumps are housed inside.
Last updated: October 2026
Key Features
Mobile cabinet housing membrane module, feed and permeate tanks, plate heat exchanger and positive displacement pumps.
Supplied with a pack of RO membranes and a pack of UF membranes; membranes change rapidly between processes.
Digital meters for temperatures and system pressure.
Process-contact parts in stainless steel, PTFE and silicone rubber.
Clean-in-place facility; easily dismantled for servicing.
Needs only cooling water and a suitable electrical supply.
Technical Specifications
| Specification | Value |
|---|---|
| Flow rates | 30, 18, 15 and 9 l/min |
| Pressure | Variable up to 55 bar |
| Diameter | 1.25 cm |
| Area | 0.024 m2 |
| Tubeside volume | 75 ml |
| Typical permeate flow | 5–50 ml/min |
| Feed tank | 15 litres |
| Permeate tank | 15 litres |
About This Product
Small quantities of process fluid are enough to establish operating parameters and then optimise them, so the move to a full-scale plant can be made with confidence. The membranes differ from full-scale ones only in length and number, which keeps the trials representative. Switching between reverse osmosis and ultrafiltration is a matter of fitting the other membrane type in the same module.
Frequently Asked Questions
Can the unit run both reverse osmosis and ultrafiltration?
Yes. It comes with a pack of RO membranes and a pack of UF membranes, and membranes can be installed or removed rapidly in the same module for either process.
What services does it need?
A cooling water connection and a suitable electrical supply are all that is required for normal operation.
What are the tank capacities?
The feed tank and the permeate tank each hold 15 litres, and typical permeate flow is 5 to 50 ml/min.
Related: Training Workshop Labs, Solid Liquid Extraction Unit, Fluidisation and Fluid Bed Heat Transfer Unit.
For a quotation on the Reverse Osmosis Ultra filtration Unit, contact Educational Lab Equipments.
