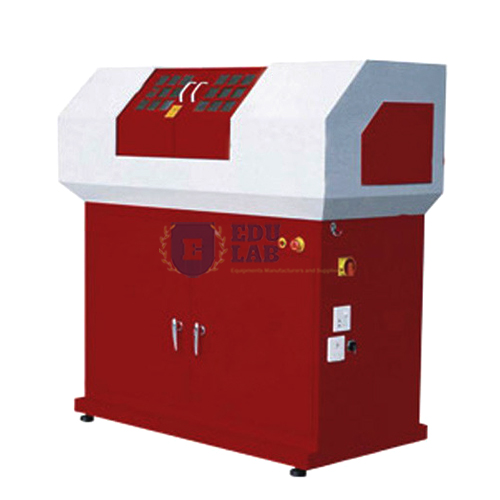

CNC Lathe Machine Floor Model Manufacturer,Supplier and Exporter in India
Product Code : EL-CTM-11726
Quick Answer: The CNC Lathe Machine Floor Model is a CNC trainer lathe with 250 mm swing over the bed, 450 mm between centres and a 4-station turret that indexes through 360 degrees, driven by a 1 kW main motor.
Last updated: October 2026
Key Features
Swing over bed 250 mm, swing over carriage 110 mm.
Centre distance 450 mm on a 135 mm wide bed.
Travel: Z 320 mm, X 180 mm; tailstock travel 50 mm.
4-station, 360 degree tool turret with 0.005 mm turret return orientation precision.
Spindle speed 100–3000 rpm from a 1 kW main motor.
Positioning precision 0.015 mm, repeat positioning precision 0.01 mm.
Technical Specifications
Specification
Value
Swing over bed
250 mm
Swing over carriage
110 mm
Centre distance
450 mm
Bed width
135 mm
Travel X / Z
180 / 320 mm
Tailstock travel
50 mm
Spindle speed
100–3000 rpm
Main motor
1 kW
X/Z axis motor
4 Nm
Feeding speed / max moving speed
500 mm/min / 2 m/min
Tool turret
4 station, 360 degree
Positioning / repeat positioning precision
0.015 mm / 0.01 mm
Machine size (L x W x H)
1460 x 760 x 1450 mm
Net weight
440 kg
About This Product
Work of up to 250 mm swing is turned between centres 450 mm apart, with both the X and Z axes driven by 4 Nm motors at a feeding speed of 500 mm/min. A program can index through the four-station turret to bring each tool into position, and the turret returns with 0.005 mm orientation precision.
Frequently Asked Questions
What is the swing over bed of the CNC Lathe Machine Floor Model?
250 mm over the bed and 110 mm over the carriage, with 450 mm between centres.
How many tools does the turret hold?
The tool turret has four stations and turns through 360 degrees, with a turret return orientation precision of 0.005 mm.
What does the machine weigh?
Net weight is 440 kg; the machine measures 1460 x 760 x 1450 mm (L x W x H).
