Precision EDM Machine

Product Code : EL-CTM-11755

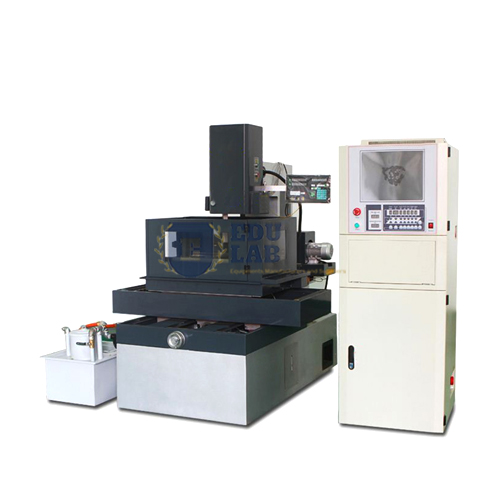

Precision EDM Machine
Description:-
Reverse sparks are also possible with these high functionality machines.
Precision EDM Machine uses electrical discharges or sparks for obtaining the desired shape.
Before the final dispatch, the entire range is checked for its flawlessness.
Offered in a varied series of specifications, these efficient and extremely durable electric discharge machining are consistent in operation and consume less electricity.

Feature:-
Two Part Design
Low Working Height
Ball Screw For X & Y Axis and L.M. Guideways
For Z-Axis.
Variable Pressure Setting of Coolant 0 To 100 kg/Cm2
Safety Pressure Switch For Over Coolant Pressure
Indigenous Controller
S.S. Accumulator For Constant Pressure
DC Stepper Motor With Belt Drive
Special Circuit For Deep Drilling
Water Tank With S.S. Steel body Coolant Pump
100% Spares Availability in Local Market
Safety Interlock Present
Current Booster For High-Speed Drilling Operation

Specification:-
Power Supply: 415 V, 3Ph, 50 Hz
Brass Electrodes: Dia 1.0 mm x 400 mm
Bakelite Guide Size: 1.0 mm: - 2 Nos
Rubber Stopper: 5 Nos
Machine Lamp: 1 No
Material: 2 Brass / Copper
Electrodes: 0.3 ~ 3.0 mm
Length: 10 No
Ruby guide: 0.0~3.0 mm
Special Electrodes for Drilling: From 3.1 to 10 mm
