Drying Oven Manufacturer,Supplier and Exporter in India
Product Code : EL-CL-11894

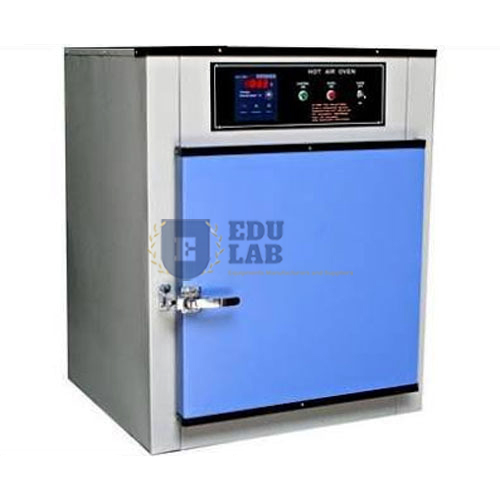

Quick Answer: The Drying Oven is a 225-litre hot air oven for drying large quantities of aggregate or soil samples at 50 to 300 degrees C. Its microcomputer PID controller has a timer, and a blower fan with air channels circulates the heat.
Last updated: October 2026
Key Features
225 litre chamber with 3 shelves and 4 shelf positions.
Microcomputer PID temperature controller with timer, 1–9999 min.
Blower fan and air channels for hot air circulation.
Door gasket and transparent thermal glass window for watching samples.
Blast and exhaust adjustable from the control panel.
Technical Specifications
Specification
Value
Capacity
225 litres
Temperature range
50–300 degrees C
Timer range
1–9999 min
Temperature fluctuation
+/-0.75 degrees C
Temperature resolution
0.10 degrees C
Heater power
2.5 kW
Shelves
3, with 4 positions
About This Product
Sized for bulk work, the oven dries large batches of aggregate or soil on its three shelves, with a digital display and temperature control protection on the panel. Samples can be watched through the thermal glass window while drying, and blast and exhaust are both adjustable from the control panel.
Frequently Asked Questions
What is the capacity of the Drying Oven?
225 litres, with three shelves that can be set in four positions.
What temperature range does it cover?
From 50 to 300 degrees C, with fluctuation of +/-0.75 degrees C and 0.10 degrees C resolution, set on a microcomputer PID controller.
Does it have a timer?
Yes. The controller includes a timer function adjustable from 1 to 9999 minutes.
