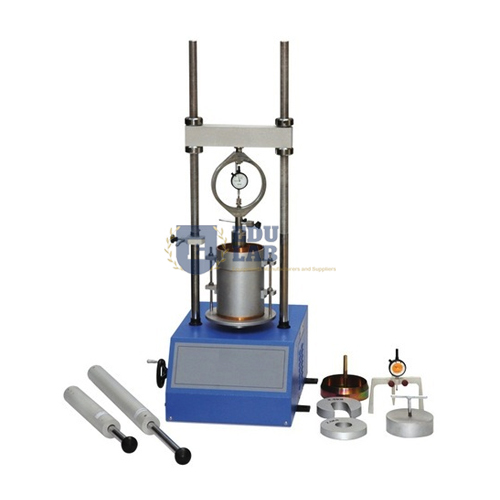

Field CBR Equipment Manufacturer,Supplier and Exporter in India
Product Code : EL-SM-11896
Quick Answer: The Field CBR Equipment measures soil bearing capacity in place, using a 50 kN field CBR jack that weighs 8.5 kg and stands 254 mm high. Proving rings, a penetration piston, extension rods, surcharge weights and a bridge-mounted dial gauge support make up the set.
Last updated: October 2026
Key Features
Field CBR jack, 50 kN capacity, 8.5 kg, 254 mm total height, with ball seating attachment.
Proving rings of 10 kN, 28 kN and 50 kN capacity.
Penetration piston, 50 mm diameter, threaded at the upper end.
Steel tubing extension rods: 2 x 5 cm, 2 x 10 cm, 1 x 30 cm, 1 x 50 cm and 1 x 100 cm.
Surcharge weights: one circular 4.54 kg, one slotted 4.54 kg and one slotted 9.07 kg.
Seamless pipe dial gauge support, 30 cm high and 45 cm wide at the base, with a quick-release clamp along the 2 m bridge.
Technical Specifications
| Specification | Value |
|---|---|
| Jack | 50 kN, 8.5 kg, 254 mm high |
| Proving rings | 10 kN, 28 kN, 50 kN |
| Penetration piston | 50 mm dia, threaded upper end |
| Surcharge weights | 4.54 kg circular (250 mm dia, 53 mm hole); 4.54 kg and 9.07 kg slotted (53 mm slot) |
| Dial gauge support | Seamless pipe, 30 cm high, 45 cm base, on 2 m bridge |
| Dial gauge (accessory) | 0.01 mm x 25 mm |
About This Product
In the field the jack drives the 50 mm penetration piston into the soil, with the extension rods acting as spacers between proving ring and piston and the surcharge weights placed around it. Penetration is read on a dial gauge whose support clamps anywhere along the 2 m bridge, while the chosen proving ring shows the load.
Frequently Asked Questions
Which proving rings come with the Field CBR Equipment?
Proving rings of 10 kN, 28 kN and 50 kN capacity are listed, along with a penetration dial indicator.
What are the extension rods for?
Machined from steel tubing in lengths of 5, 10, 30, 50 and 100 cm, they act as spacers between the proving ring and the penetration piston.
Is a dial gauge included?
A 0.01 mm x 25 mm dial gauge is listed as an accessory, used with the dial gauge support on the bridge.
