Plastic Limit Roller Manufacturer,Supplier and Exporter in India
Product Code : EL-SM-11912

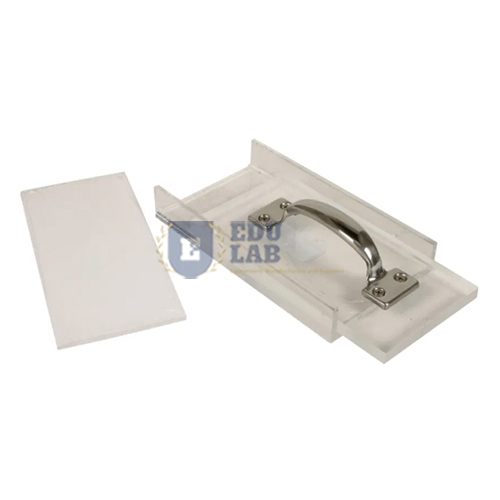

Quick Answer: The Plastic Limit Roller determines the plastic limit of soil by mechanical rolling between top and bottom plates separated by 3.2 mm (1/8 in) side rails. It uses special adhesive-backed absorbent paper that sheds no fibres into the soil.
Last updated: October 2026
Key Features
Top and bottom roller plates separated by 3.2 mm (1/8 in) side rails.
Top plate with integral handle.
Adhesive-backed absorbent paper that sheds no fibres into the soil.
Supplied with a 50-sheet pad of adhesive paper and instructions.
Rigid acrylic measuring device, 4.8 mm and 9.5 mm (3/16 in–3/8 in).
Technical Specifications
Specification
Value
Rail spacing
3.2 mm (1/8 in)
Measuring device
Rigid acrylic, 4.8 mm and 9.5 mm
Paper
Adhesive-backed absorbent, 50-sheet pad
Handle
Integral, on top plate
About This Product
Rolling the soil between two plates held apart by fixed side rails makes the plastic limit determination mechanical rather than freehand. The paper is adhesive-backed so it stays on the plates, and a 50-sheet pad with instructions comes with the roller. The Plastic Limit Roller can be dispatched from India to Barbados, Sudan, Iceland, Democratic Republic of the Congo, Zambia and Republic of the Congo.
Frequently Asked Questions
What gap does the Plastic Limit Roller give?
The top and bottom roller plates are separated by side rails of 3.2 mm (1/8 in).
Is paper supplied?
Yes. A 50-sheet pad of the special adhesive-backed absorbent paper is included, along with instructions.
