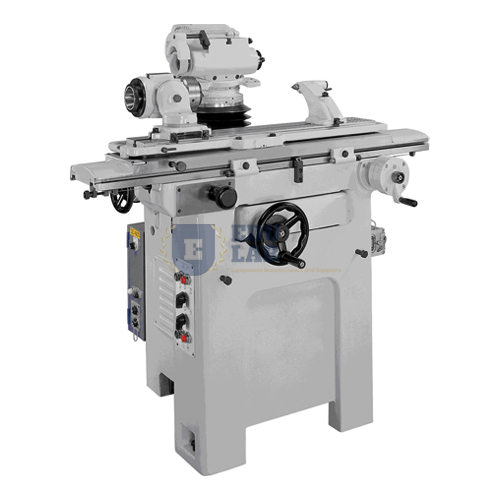

Universal Tool and Cutter Grinder Manufacturer,Supplier and Exporter in India
Product Code : EL-WEAWLM-11669
Quick Answer: The Universal Tool and Cutter Grinder takes work 500 mm between centres, swings 225 mm over the table and uses grinding wheels up to 175 mm in diameter. The wheel head tilts vertically through 15 degrees.
Last updated: October 2026
Key Features
Distance between centres 500 mm.
Grinding wheel up to 175 mm diameter.
Swing over table 225 mm.
Job size up to 500 x 350 mm.
Table traverse 500 mm longitudinal, 215 mm cross.
Job weight up to 15 kg in the chuck or 25 kg between centres.
Technical Specifications
Specification
Value
Distance between centres
500 mm
Maximum grinding wheel diameter
175 mm
Swing over table
225 mm
Maximum job dimensions
500 x 350 mm
Longitudinal traverse of table
500 mm
Cross traverse of table
215 mm
Vertical tilt of wheel head
15 degrees
Maximum job weight
15 kg in chuck; 25 kg between centres
About This Product
A tool and cutter grinder is used to sharpen and re-form cutting tools, and this one holds the work either in a chuck or between centres. The table moves 500 mm lengthwise and 215 mm across, giving room for long cutters.
Frequently Asked Questions
How heavy a job can the Universal Tool and Cutter Grinder hold?
Up to 15 kg in the chuck and up to 25 kg between centres, with job dimensions up to 500 x 350 mm.
How far does the table travel?
Longitudinal traverse is 500 mm and cross traverse is 215 mm.
