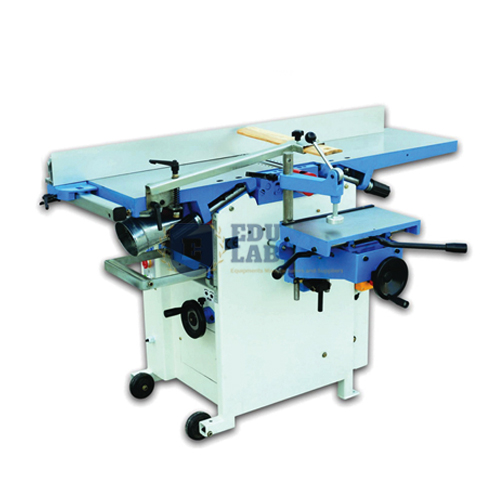

Combination Surface Planer and Thicknesser

Product Code : EL-WWPT-11689

Combination Surface Planer and Thicknesser

Description:-

Motor

4kw/3hp

Max. Blade size

254mm

Max. Planning width

408mm

Thickness height

3-225mm

Max. Chip removal for thicknesser

4.5mm

Max. Chip removal for planer

3 mm

Feed speed

7 m/min

Rubber out feed roller-diameter

32 mm

Thicknessing table size

600 x 408mm

Planer table size

1660 x 410mm

Dust outlet

120mm

Cutter block diameter

70 mm

Cutter block speed

5500 rpm

Knives

3

Fence tilt

45-90 degree

Machine dimensions

1660 x 870 x 1000mm

Packing size

1670 x 690 x 980mm
