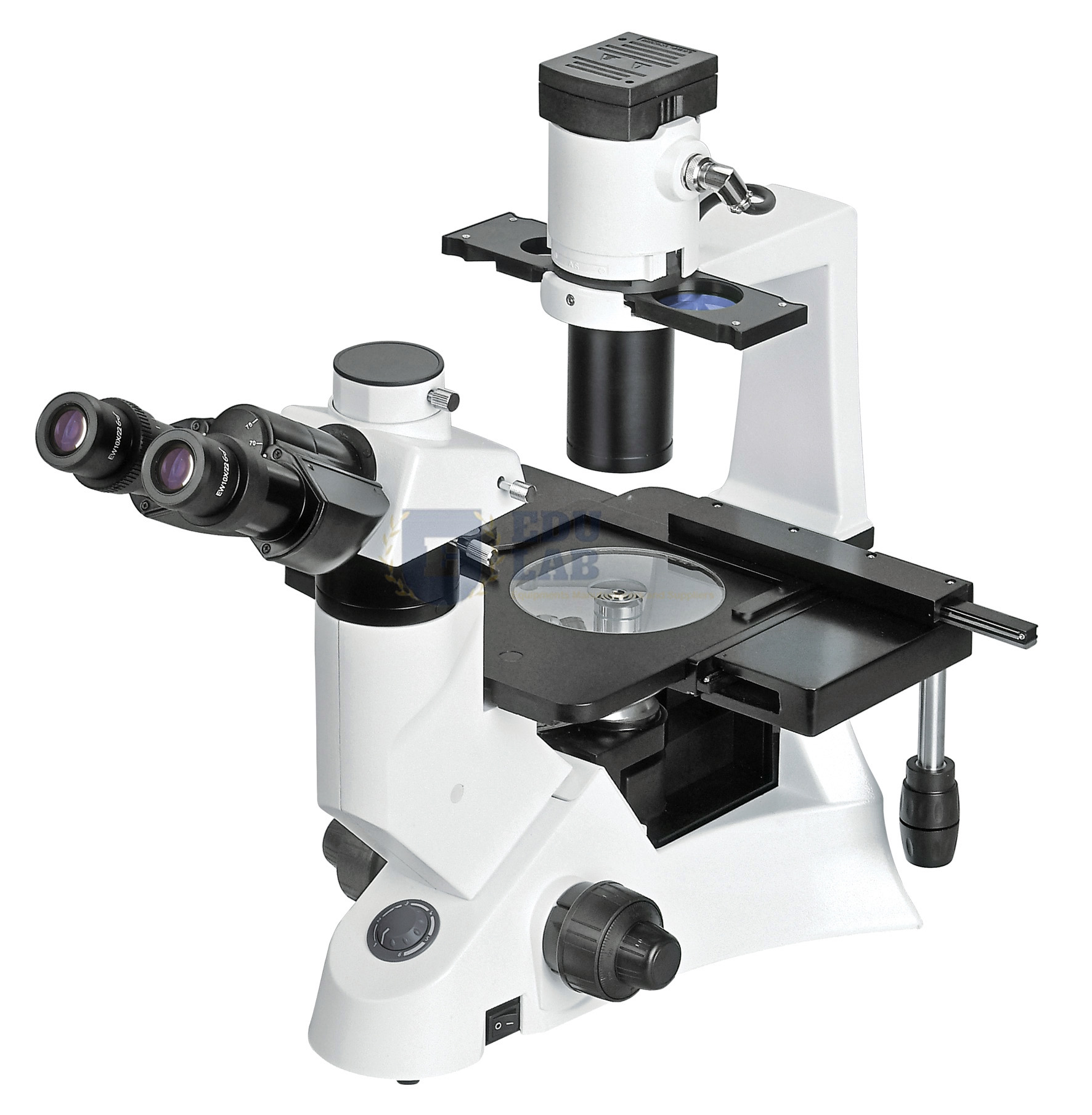

Inverted Phase Contrast Microscope Manufacturer,Supplier and Exporter in India
Product Code : EL-M-11030
Quick Answer: The Inverted Phase Contrast Microscope uses an infinity corrected optical system with two plan phase objectives, PH4x and PH10x, and a choice of 6V 30W halogen or 3W LED lighting.
Last updated: November 2026
Key Features
Infinity corrected optics.
PH4x and PH10x plan phase objectives, with a PH20X objective as an option.
Halogen 6V 30W or 3W LED illumination.
Binocular, trinocular or ergonomic head.
High-eyepoint N-WF 10x eyepieces.
Technical Specifications
| Specification | Value |
|---|---|
| Optical system | Infinity corrected |
| Objectives | Plan phase PH4x, PH10x; PH20X optional |
| Illumination | Halogen 6V 30W or 3W LED |
| Head | Binocular, trinocular or ergonomic |
| Eyepieces | N-WF 10x, high eyepoint |
About This Product
Phase contrast objectives are the core of this inverted microscope, starting with PH4x and PH10x and extendable with an optional PH20X. The head can be binocular, trinocular or ergonomic and the light source halogen or LED, so the set-up can be matched to how a lab works. Colleges and TVET centres in Uganda, Saint Lucia, Laos, Moldova and Trinidad and Tobago can source the Inverted Phase Contrast Microscope from Educational Lab Equipments.
Frequently Asked Questions
Which objectives are supplied?
Two plan phase objectives, PH4x and PH10x. A PH20X objective is available as an option.
What light source does it use?
Either a 6V 30W halogen lamp or a 3W LED.
Which consumables go with the Inverted Phase Contrast Microscope?
Cultures are kept and viewed in dishes and flasks; a Rack For Petri Dishes stores Petri dishes, and samples can be stored in Storage Vial or Cryo Vial vials for storage down to -190 degrees C.
Why use an inverted microscope like the Inverted Phase Contrast Microscope?
The objectives sit below the stage and the light comes from above, so cells can be viewed through the base of a culture flask or dish without opening it or disturbing the sample.
Related: Microscopes, Inverted Microscope, Inverted Tissue Culture Microscope, Inverted Fluorescence Microscope.
For a quotation on the Inverted Phase Contrast Microscope, contact Educational Lab Equipments.
