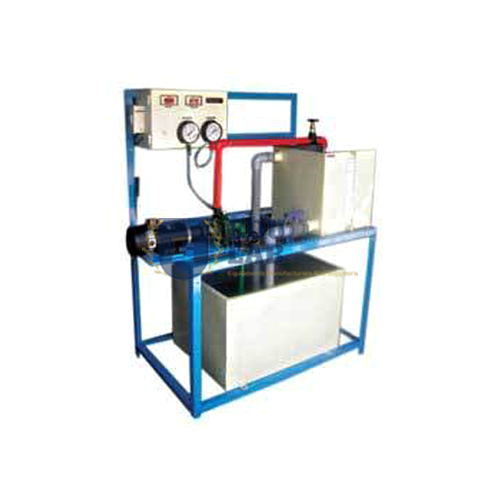

Bernoullis Theorem Complete with Collecting Tank Manufacturer,Supplier and Exporter in India
Product Code : EL-TWL-11776
Quick Answer: Bernoullis Theorem Complete with Collecting Tank is a closed-loop fluid mechanics set-up for verifying Bernoulli's theorem by experiment, using a one-piece clear acrylic convergent-divergent test section connected to piezometer tubes. Flow rate is found with the measuring tank and a stopwatch.
Last updated: October 2026
Key Features
One-piece clear acrylic test section with convergent and divergent parts.
Pressure tappings along the section connected to piezometer tubes.
Supply tank, measuring tank, inlet water tank and pump for closed-loop circulation.
Stainless steel tanks and wetted parts on a painted structure.
Measuring tank and stopwatch provided for flow rate.
Compact, stand-alone set-up that is simple to run and maintain.
Technical Specifications
| Specification | Value |
|---|---|
| Test section | One-piece clear acrylic, convergent and divergent |
| Tanks and wetted parts | Stainless steel |
| Circulation | Closed loop, with pump |
| Flow measurement | Measuring tank and stopwatch |
| Electric supply | 0.5 kW, 220 V AC, single phase |
| Water | Tap water connection (BSP); distilled water 60 litres, optional |
About This Product
Water circulates in a closed loop through the acrylic section, and the piezometer tubes show the pressure head at each tapping as the section narrows and widens. Comparing those heads with the flow measured in the collecting tank lets students check Bernoulli's theorem along the duct. A floor area with a drain is needed besides the electrical and water connections. The Bernoullis Theorem Complete with Collecting Tank can be dispatched from India to Uganda, Mexico, Vanuatu, Turkey, Bangladesh and Samoa.
Frequently Asked Questions
What utilities does the set-up need?
A 0.5 kW, 220 V AC single-phase electric supply, a tap water connection with BSP fitting, and a floor area with drain. Distilled water of about 60 litres is optional.
How is the flow rate measured?
Water collected in the measuring tank is timed with the stopwatch provided.
What is the test section made of?
A single piece of clear acrylic with convergent and divergent sections, so the water flow can be seen.
